BRP Coil Protection Module
01General Features
The BRP is a coil voltage regulation module designed with flexible options to prevent brake and governor coils from being continuously exposed to high current.
02How It Works
The module first applies full voltage to the coil and drops it to the selected ratio after 3 seconds. This delivers the power the coil needs to pull in, while reducing heating and energy consumption during the holding phase.
First 3 seconds
The coil pulls in at 220 V or 110 V depending on the switch position — full pull-in force is delivered here.
After 3 seconds
The voltage drops to the ratio selected with the second switch. The coil keeps holding, with less heating and consumption.
The ratio is selected with the two switches on the device — see Output options for the details.
03Technical Specifications
Input supply
| Property | Description |
|---|---|
| Supply voltage | 220 V AC |
04Output Options
Output behaviour is determined by the position of the two switches on the device.
| Switch 1 | Switch 2 | Description |
|---|---|---|
| 220 V | 100% | Output starts and continues at 220 V. |
| 220 V | 75% | Output starts at 220 V, drops to 170 V after 3 s. |
| 220 V | 50% | Output starts at 220 V, drops to 110 V after 3 s. |
| 220 V | 25% | Output starts at 220 V, drops to 55 V after 3 s. |
| 110 V | 100% | Output starts and continues at 110 V. |
| 110 V | 75% | Output starts at 110 V, drops to 75 V after 3 s. |
| 110 V | 50% | Output starts at 110 V, drops to 55 V after 3 s. |
| 110 V | 25% | Output starts at 110 V, drops to 35 V after 3 s. |
05Wiring

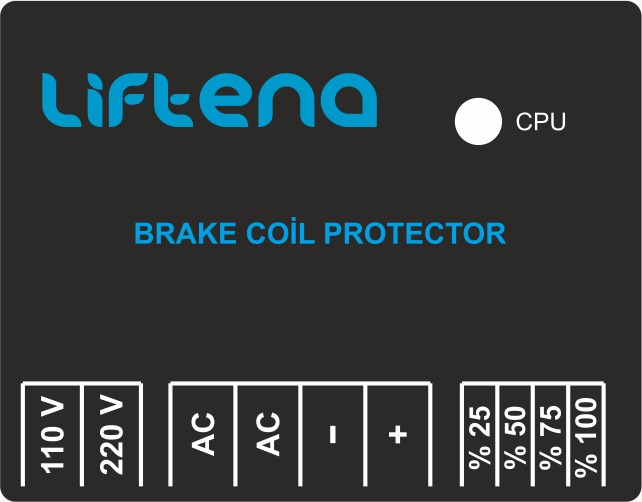

Terminal names
| Terminal | Description |
|---|---|
AC | 220 V AC input |
AC | 220 V AC input |
− | Output negative terminal |
+ | Output positive terminal |
The input terminals carry 220 V AC mains voltage. Switch off the power before wiring and confirm by measurement that it is off.
- Switch off the power and confirm by measurement that it is off.
- Connect the 220 V AC supply to the
ACterminals. - Connect the coil to the
+and−terminals. - Set the switches to suit your application — see Output options.
- Switch the power on and observe the pull-in and holding behaviour.

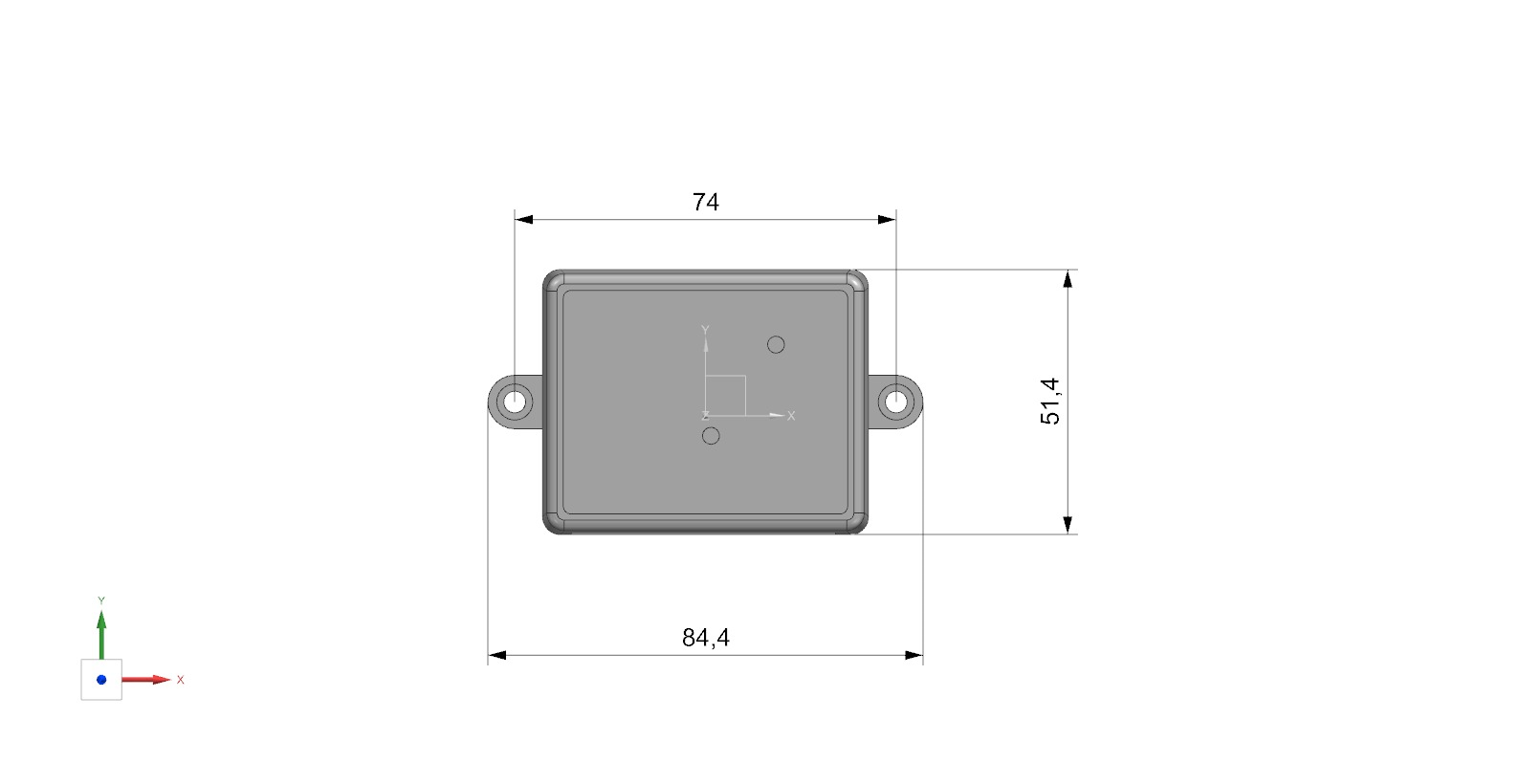

06Mounting Dimensions
